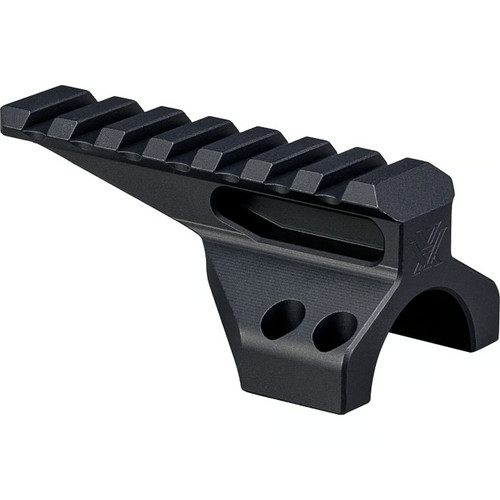

Built for precision shooters who demand a clean, stable platform for advanced rail-mounted accessories, the Vortex Precision Matched Diving Board Mount 34mm adds a purpose-built Picatinny mounting surface directly above a compatible 34mm riflescope setup. Engineered to provide ideal positioning for the Vortex Impact 4000 Ballistic Laser Rangefinder, it also creates a versatile mounting point for red dots and other Picatinny-compatible accessories.
Precision machined from certified USA 7075-T6 billet aluminum and held to an exceptionally tight .0005" tolerance, this mount is designed around the same exacting standards associated with Vortex Precision Matched components. A durable Type III hard-coat anodized finish adds protection for demanding range and field use, while the 34mm configuration and 1.61" height provide the positioning needed for a streamlined, integrated precision-optics system.
Precision Engineering In Depth
1. Purpose-Built Accessory Positioning
The diving board configuration provides an elevated Picatinny mounting surface designed to place compatible accessories in an efficient position above the optic. It is particularly well suited to the Vortex Impact 4000 Rail Mounted Ballistic Laser Rangefinder, helping create an integrated precision shooting system without requiring a separate accessory rail elsewhere on the platform.
2. Precision-Machined 7075-T6 Aluminum
Machined from certified USA 7075-T6 billet aluminum, the Precision Matched Diving Board Mount combines high structural strength with a compact, purpose-driven design. Vortex holds the component to an exceptionally tight .0005" machining tolerance, supporting the precise fit and consistency demanded by modern long-range and precision shooting systems.
3. Versatile Picatinny Accessory Platform
Although optimized for the Impact 4000, the integrated Picatinny interface is not limited to a single accessory. Compatible red dots and other Picatinny-mounted equipment can also be positioned on the diving board, giving shooters additional flexibility when configuring an optics system around specific range, competition, or precision-shooting requirements.
Key Performance Features
- 34mm Configuration: Purpose-built for compatible 34mm Vortex Precision Matched optics mounting systems.
- Impact 4000 Ready: Provides ideal positioning for the Vortex Impact 4000 Rail Mounted Ballistic Laser Rangefinder.
- Picatinny Accessory Interface: Supports compatible red dots and other Picatinny-mounted accessories.
- 7075-T6 Billet Aluminum: Precision machined from certified USA aluminum for strength and dimensional consistency.
- .0005" Machining Tolerance: Manufactured to exceptionally tight tolerances for precise component fit.
- Type III Hard-Coat Anodized: Durable surface treatment designed to protect the aluminum construction during demanding use.
- 1.61" Height: Designed to establish the appropriate elevated accessory position in the 34mm configuration.
Technical Specifications
| Brand | Vortex Optics |
| Product | Precision Matched Diving Board Mount |
| Tube Size | 34mm |
| Mounting Interface | Picatinny |
| Mount Height | 1.61" |
| Material | Certified USA 7075-T6 Billet Aluminum |
| Machining Tolerance | .0005" |
| Finish | Type III Hard-Coat Anodized |
| Primary Compatibility | Vortex Impact 4000 Rail Mounted Ballistic Laser Rangefinder |
| Additional Compatibility | Compatible Red Dots & Picatinny-Mounted Accessories |
What's Included
- Vortex Precision Matched Diving Board Mount – 34mm
- Four T-25 Torx screws
- T-25 Torx wrench
